Playfield Engine

Playfield Engine is a 2D game scripting runtime that works everywhere. With scripts written in Playfield Script, it can render graphics and play sounds seamlessly across platforms.

GitHub Repository | Getting Started

Download v0.8.9 now!

📁 Windows macOS Linux ⛏️
All-in-One Windows 64-bit Installer macOS AppImage x86_64 iOS
Source Code Windows 64-bit EXE Android
Samples Only Windows Arm64 EXE WebAssembly
Windows 32-bit EXE Unity Plugin

Feature Highlights

Built completely from scratch, Playfield Engine features:

  • Comfortable Scripting:
    • Powered by Playfield Script, a C/JavaScript-like scripting language designed in-house.
    • Native performance with a built-in JIT compiler.
    • Write a script and run it instantly — Jot and Run!
  • Portable Rendering & Audio:
    • Powered by StratoHAL, a portable game library also designed in-house.
    • Runs virtually everywhere: Windows, macOS, Linux, Chromebook, WebAssembly, iOS, Android, and even consoles.
    • Deploy to platforms you don't even own — Go Far, Stay Close!
  • Minimal Runtime:
    • The runtime is only ~1.4 MB on Windows.
    • Perfect for mobile apps — Go Magically Small, Get Massively Loved!

platforms

Why Playfield Engine?

"If a game engine could run anywhere, how would the world change?"

Playfield Engine was born from this single question.

Creativity shouldn't depend on the power of your computer, where you live, or what tools you have. Playfield Engine was created with the belief that every creator deserves space to explore, no matter their surroundings.

It runs smoothly even on older or low-spec machines — if you have a computer, there's a place for you to create. It's a helpful companion for creators everywhere — especially in places with fewer resources. If you have something to make, Playfield Engine will be here to walk with you.

Whether you're using a Raspberry Pi in a classroom, or using a UN-issued Chromebook in a temporary shelter, Playfield Engine offers gentle tools to help bring your ideas to life — in a way that feels simple, thoughtful, and your own.

The goal is simple: To make game development accessible, thoughtful, and within reach for everyone.

Dreams fuel it — and they're the only requirement.

Live Web Demo

These are the sample games that work on Web browsers.

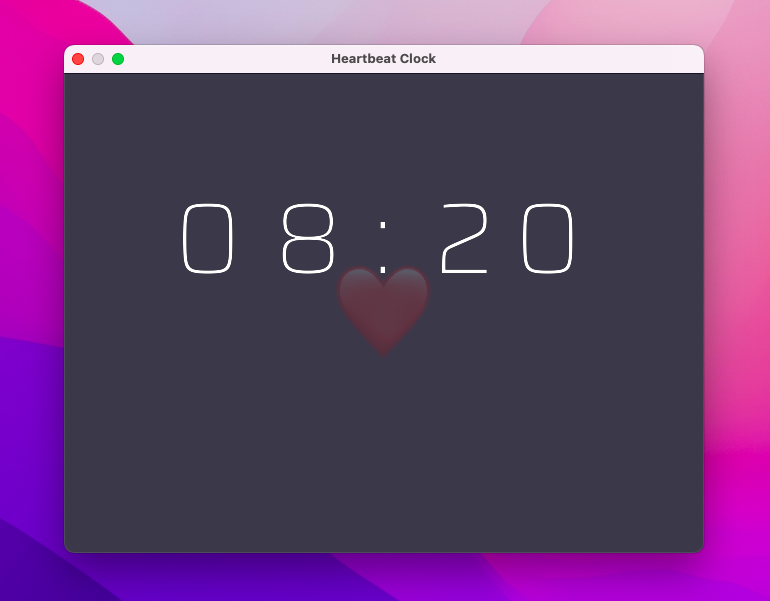

Heartbeat Clock

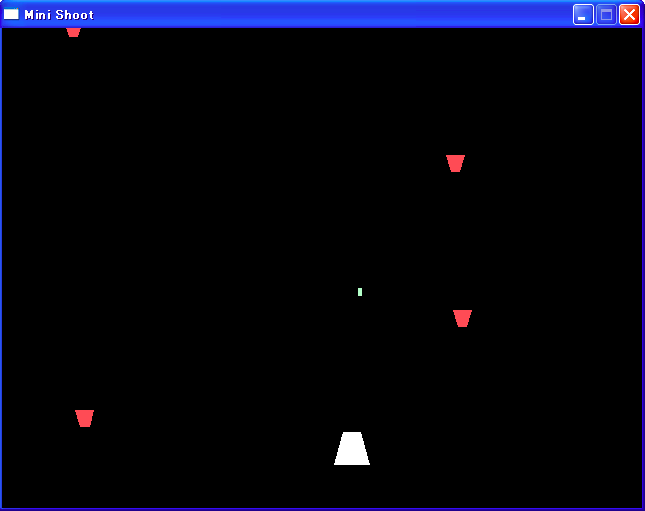

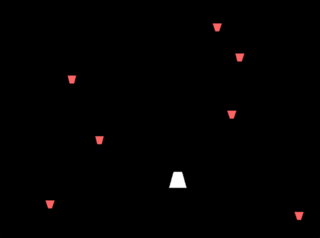

Mini Shoot

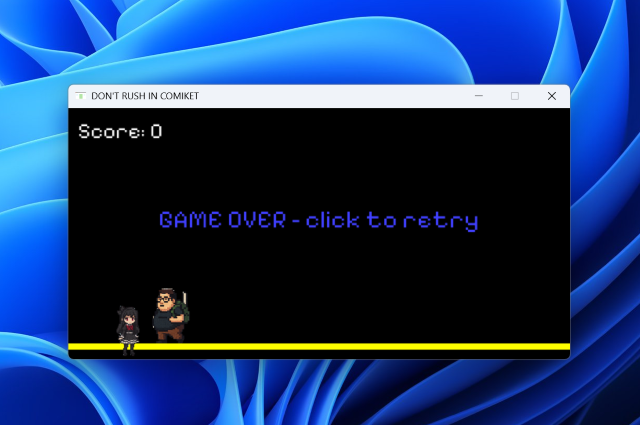

DON'T RUSH IN COMIKET

Status

Currently in active development on the 0.8.x branch. Stable 1.0.0 release planned.

Nightly actually works on:

Type OS Status Confirm Date Confirmed On
Desktop Windows ✅ Works 22 Sep 2025 Windows 11 x64
macOS ✅ Works 22 Sep 2025 macOS 15 Sequoia Arm64
Linux ✅ Works 22 Sep 2025 Ubuntu 24.04 LTS x86_64

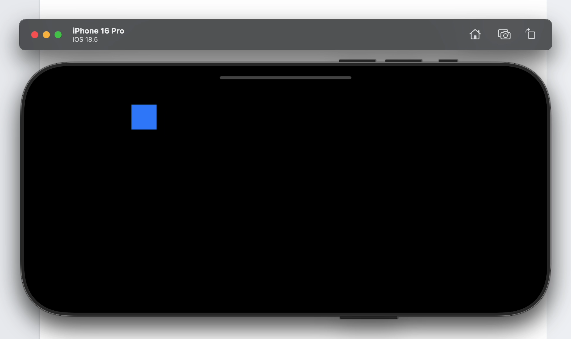

Mobile iOS ✅ Works 22 Sep 2025 iPhone iOS 18

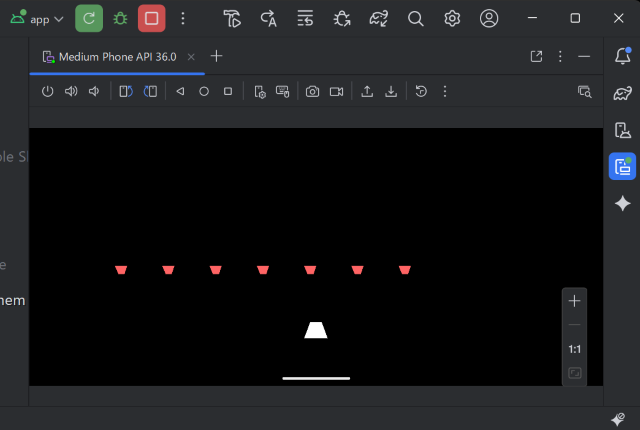

Android ✅ Works 22 Sep 2025 Android 16
BSD FreeBSD ✅ Works 22 Sep 2025 FreeBSD 14.3 amd64

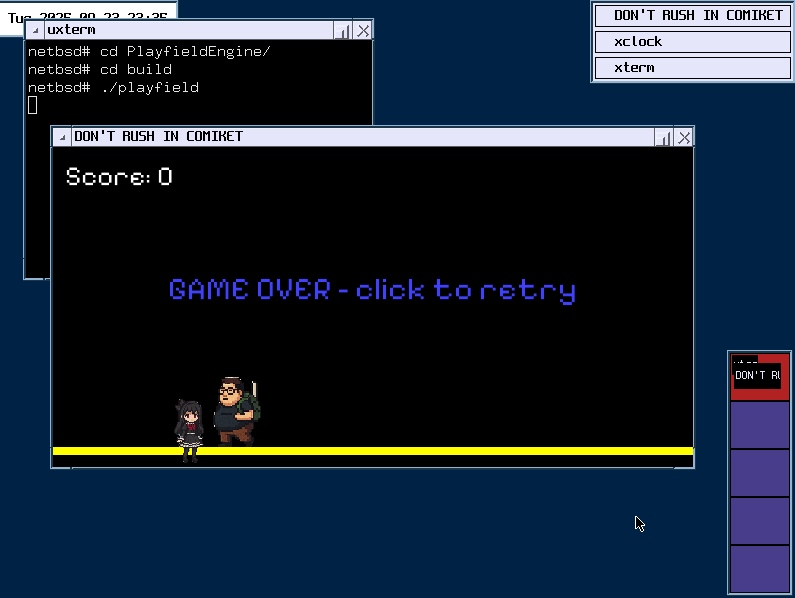

NetBSD ✅ Works 22 Sep 2025 NetBSD 10.1 amd64
OpenBSD ✅ Works 22 Sep 2025 OpenBSD 7.7 amd64
Others WebAssembly ✅ Works 22 Sep 2025 Chrome
Chromebook ✅ Works 22 Sep 2025 Chrome Here
Unity ✅ Works 22 Sep 2025 Unity 6.2 Windows 11 x86_64

Example

Here's a simple example that displays an image following the mouse cursor. This shows the basic lifecycle: setup (window config), start (asset loading), and frame (per-frame logic).

func setup() {
    var config = {
        title: "My Sample Game",
        width: 640,
        height: 480
    };
    return config;
}

func start() {
    myTexture = Engine.loadTexture({file: "apple.png"});
}

func frame() {
    Engine.draw({
        texture: myTexture
        x: Engine.mousePosX,
        y: Engine.mousePosY,
    });
}

Note: setup() defines the window, start() loads resources, and frame() is called each frame to render and update.

Quick Start

Precompiled binaries are available for Windows, macOS, Linux, and Chromebook!

1. Download the latest binary:

  • Download the All-in-One file at the top of this page.
  • Extract the downloaded file.

2. Run a game script

  • For Windows:
    • Double-click the playfield.exe file.
    • The game will be started.
  • For macOS:
    • Open the misc folder.
    • Open the macos folder.
    • Open the Playfield.dmg file.
    • Copy the application inside the dmg file alongside the main.pf file.
    • Double-click the copied application file.
    • The game will be started.
  • For Linux:
    • Open the misc folder.
    • Open the linux folder.
    • Copy the PlayfieldEngine-x86_64.AppImage file alongside the main.pf file.
    • Double-click the copied AppImage file.
    • The game will be started.
  • For Chromebook:
    • Open this URL on the browser.
    • Press the Open Folder button.
    • Select the folder where the main.pf file exists.
    • The game will be started.

3. Edit a game script

  • With Playfield Editor (Currently Windows only):
    • Double-click the playfield-editor.exe file to run the editor.
    • Open the main.pf file from the editor.
    • Edit the file.
    • Press Ctrl+R to run the game. (Press R key while holding Ctrl key down)
  • With your favorite editor:
    • Prior to editing, copy the engine alongside the main.pf file.
    • Open your favorite editor and load the main.pf file.
    • Edit the file and save it.
    • Run the engine.

4. Explore more features

Technical Overview

Playfield Engine is not merely a wrapper around SDL combined with a scripting language. It features its own rendering and audio backends, and its own scripting language, positioning it as a fully independent game engine.

Core Architecture

+----------------------------------------------------------+
|                       User Scripts                       |
+----------------------------------------------------------+
                             ||
+----------------------------------------------------------+
|                 Playfield Script Runtime                 |
+----------------------------------------------------------+
                ||                            ||
+--------------------------------+  +----------------------+
|  StratoHAL (Rendering/Audio)   |  |   NoctLang VM (JIT)  |
+--------------------------------+  +----------------------|

  • Scripting: Integrates NoctLang, a tiny yet mighty language designed for game scripting.

  • Rendering: Supports native DirectX 9/11/12, Metal, OpenGL, OpenGL ES, and WebGL for wide compatibility.

  • Audio: Provides lightweight audio support through native DirectSound (Windows), Audio Unit (macOS/iOS), ALSA (Linux), OSS (BSD), and other APIs.

StratoHAL

StratoHAL originated as the codebase of a 2D game engine developed since 2001, and has been open-sourced with a proven record of exceptional stability. Evolving over a quarter century from the Windows 9x era, StratoHAL has grown to support macOS, Linux, iOS, Android, WebAssembly, and Unity. It has been running reliably on smartphones for more than a decade. While SDL3 already exists as a popular open-source alternative, StratoHAL covers the same major platforms as SDL3 — and uniquely provides console support through Unity without relying on any NDA-restricted code.

Platform Support

Platform Type OS / Platform Notes
Desktop Windows DirectX 12/11/9, DirectSound
macOS Metal, Audio Unit
ChromeOS OpenGL, ALSA
Linux OpenGL, ALSA
*BSD OpenGL, OSS (/dev/dsp)
Qt Qt OpenGL
Mobile iOS Metal, Audio Unit
Android OpenGL, OpenSL ES, NDK
Web WebAssembly WebGL, OpenAL, via Emscripten
Console Unity Unity Plugin

Console Unity Plugin Notice

Playfield Engine provides Unity Plugin binaries for platforms including Windows 64-bit and game consoles. These binaries are built entirely with the open-source version of LLVM/Clang toolchain (no proprietary SDKs).

NoctLang

Playfield Script = NoctLang + Playfield API

NoctLang is a lightweight scripting language designed specifically for Playfield Engine. With a game-oriented syntax, it emphasizes clarity, instant startup, and tight integration with the engine.

The built-in JIT compiler supports a wide range of CPU architectures, including both 32-bit and 64-bit of: Intel, Arm, RISC-V, PowerPC, MIPS.

For platforms where JIT is restricted (such as mobile or consoles), NoctLang can fall back to interpreter mode, and AOT (ahead-of-time) compilation using a C source backend — ensuring full compatibility even in tightly controlled environments.

Script Execution Mode

On desktop platforms, scripts are executed with JIT compilation, delivering very high performance. On other platforms, they run quickly with a high-performance interpreter. If you need execution speed beyond the interpreter, AOT (ahead-of-time) compilation is also available.

Platform Mode
Windows x86 JIT
Windows x64 JIT
Windows arm64 JIT
macOS x86_64 JIT
macOS arm64 JIT
Linux x86 JIT
Linux x86_64 JIT
Linux armv7 JIT
Linux arm64 JIT
FreeBSD x86_64 JIT
NetBSD x86_64 JIT
OpenBSD x86_64 Interpreter or AOT
iOS Interpreter or AOT
Android Interpreter or AOT
WebAssembly Interpreter or AOT
Unity Plugin Interpreter or AOT

Runtime Footprint

Platform Binary Size Memory Usage (GC)
All targets ~2 MB Allocates 256 MB at startup for GC; does not exceed that limit

The garbage collector allocates 256 MB at startup because currently 256 MB is the maximum heap size.

Garbage Collection

Playfield Engine implements a high-performance garbage collector similar to the HotSpot VM in Java, so you generally don’t need to worry much about delays caused by garbage collection.

  • The garbage collector uses a generational GC, managing objects in young and old generations.
  • Young-generation GC runs extremely fast using a copying algorithm (semi-space copy GC).
  • Old-generation GC uses a mark-and-sweep algorithm and performs compaction when necessary (mark-sweep-compact GC).

Tests

Playfield Engine is mainly tested on the following environments in the development.

Type OS Version Architecture
Desktop Windows 11 x64
arm64
macOS 15 arm64
12 x86_64
Ubuntu 24.04 x86_64
arm64
Kubuntu 25.04 x86_64
Browser Chrome 139 WebAssembly
Safari 18.6 WebAssembly
Smartphone iOS 18 Simulator
Android 16 Simulator
Console Unity 6.2 Windows x64

CMake Presets

Playfield Engine ships with CMake presets covering various platforms and build configurations.

Preset Platform Compiler Directory Target Type
windows-msvc-x86-debug Windows MSVC out/build/windows-x86-debug playfield.exe Executable
windows-msvc-x86-release Windows MSVC out/build/windows-x86-release playfield.exe Executable
windows-msvc-x64-debug Windows MSVC out/build/windows-x64-debug playfield.exe Executable
windows-msvc-x64-release Windows MSVC out/build/windows-x64-release playfield.exe Executable
windows-msvc-arm64-debug Windows MSVC out/build/windows-arm64-debug playfield.exe Executable
windows-msvc-arm64-release Windows MSVC out/build/windows-arm64/release playfield.exe Executable
windows-mingw-x86 Windows MinGW build-mingw-x86 playfield.exe Executable
windows-mingw-x86_64 Windows MinGW build-mingw-x86_64 playfield.exe Executable
windows-mingw-arm64 Windows MinGW-LLVM build-mingw-arm64 playfield.exe Executable
macos macOS Clang build-macos Playfield.app App Bundle
linux Linux GCC build-linux playfield Executable
freebsd FreeBSD Clang build-freebsd playfield Executable
netbsd NetBSD GCC build-freebsd playfield Executable
openbsd OpenBSD Clang build-freebsd playfield Executable
wasm WebAssembly Emscripten build-wasm index.html HTML + Wasm
wasm-local Chromebook Emscripten build-wasm-local index.html HTML + Wasm
ios-device iOS Device Clang build-ios-device libplayfield.a Static Library
ios-simulator iOS Simulator Clang build-ios-simulator libplayfield.a Static Library
android-x86 Android x86 Clang build-android-x86 libplayfield.so Shared Library
android-x86_64 Android x86_64 Clang build-android-x86_64 libplayfield.so Shared Library
android-armv7 Android armv7 Clang build-android-armv7 libplayfield.so Shared Library
android-arm64 Android arm64 Clang build-android-arm64 libplayfield.so Shared Library
unity-win64 Unity Plugin Clang-CL build-unity-win64 libplayfield.dll DLL Plugin
unity-switch Unity Plugin Clang build-unity-switch libplayfield.a Static Library
unity-ps5 Unity Plugin Clang build-unity-ps5 libplayfield.a Static Library
unity-xbox Unity Plugin Clang build-unity-xbox libplayfield.a Static Library

Samples

Samples are added timely.

Name Directory Description
bouncer samples/bouncer A block bounce demo.
rush samples/rush A jumping game demo.
heartbeatclock samples/hearbeatclock A clock.
shoot samples/shoot A mini shooting.

ChatGPT Support

To generate game templates with ChatGPT, please let it load the following references:

ChatGPT can then create runnable Playfield Engine games directly.

Note: In ChatGPT, you need to click the "+" button and enable "Web Search" so that it can read the above references.

Localization / Internationalization

Playfield Engine supports the following locales for the UI messages.

Language Locale Code Translation Type Scope of Translation
English en-US Original UI / Docs / Samples
Spanish es-ES Machine Translation UI
French fr-FR Machine Translation UI
Italian it-IT Machine Translation UI
German de-DE Machine Translation UI
Greek el-GR Machine Translation UI
Russian ru-RU Machine Translation UI
Simplified Chinese zh-CN Machine Translation UI
Traditional Chinese zh-TW Machine Translation UI
Japanese ja-JP Professional Translation UI / Docs

How to switch languages
Playfield Engine uses the system locale. To switch languages, set your system locale.

Contributing Translations
Translation files are located under the three i18n/ directories. (main, HAL and NoctLang) To propose a new translation or update an existing one, please open an Issue or submit a Pull Request.

Thirdparty Libraries

Playfield Engine uses the following libraries. The source code tarballs for the libraries are included in this repository.

  • zlib
  • libpng
  • libogg
  • libvorbis
  • JPEG9
  • libwebp
  • brotli
  • bzip2
  • FreeType2

Compatibily List

Windows:

OS Version Patch CPU Runtimes 32-bit Binary 64-bit Binary Direct3D
Windows XP SP3 x86 DirectX End-User Runtimes (June 2010) ✅ - 9.0
Windows XP SP3 x64 DirectX End-User Runtimes (June 2010) ✅ ❌ 9.0
Windows Vista x86 DirectX End-User Runtimes (June 2010) ✅ - 9.0
Windows Vista x64 DirectX End-User Runtimes (June 2010) ✅ ❌ 9.0
Windows Vista SP1 x86 DirectX End-User Runtimes (June 2010) ✅ - 9.0
Windows Vista SP1 x64 DirectX End-User Runtimes (June 2010), Microsoft Visual C++ Redistributable 2015 ✅ ✅ 9.0
Windows Vista SP2 x86 DirectX 11 Platform Update ✅ - 11.0
Windows Vista SP2 x64 DirectX 11 Platform Update, Microsoft Visual C++ Redistributable 2015 ✅ ✅ 11.0
Windows 7 x86 ✅ - 11.0
Windows 7 x64 Microsoft Visual C++ Redistributable 2015 ✅ ✅ 11.0
Windows 7 SP1 x86 ✅ - 11.0
Windows 7 SP1 x64 Microsoft Visual C++ Redistributable 2015 ✅ ✅ 11.0
Windows 8 x86 ✅ - 11.0
Windows 8 x64 Microsoft Visual C++ Redistributable 2015 ✅ ✅ 11.0
Windows 8.1 x86 ✅ - 11.0
Windows 8.1 x64 ✅ ✅ 11.0
Windows 10 x86 ✅ - 12.0
Windows 10 x64 ✅ ✅ 12.0
Windows 10 arm64 ✅ ✅ 12.0
Windows 11 x64 ✅ ✅ 12.0
Windows 11 arm64 ✅ ✅ 12.0

Note: playfield.exe is the 64-bit binary and playfield32.exe is the 32-bit one.

macOS:

OS Version CPU Status
OS X El Capitan 10.11 x86_64 ✅
macOS Sierra 10.12 x86_64 ✅
macOS High Sierra 10.13 x86_64 ✅
macOS Mojave 10.14 x86_64 ✅
macOS Catalina 10.15 x86_64 ✅
macOS Big Sur 11.0 arm64 ✅
macOS Big Sur 11.0 x86_64 ✅
macOS Monterey 12.0 arm64 ✅
macOS Monterey 12.0 x86_64 ✅
macOS Ventura 13.0 arm64 ✅
macOS Ventura 13.0 x86_64 ✅
macOS Sonoma 14.0 arm64 ✅
macOS Sonoma 14.0 x86_64 ✅
macOS Sequoia 15.0 arm64 ✅
macOS Sequoia 15.0 x86_64 ✅
macOS Tahoe 26.0 arm64 ✅
macOS Tahoe 26.0 x86_64 ✅

Linux:

  • Kernel 2.6+
  • X.org or XWayland
  • OpenGL (Mesa or NVIDIA)

iOS:

OS Status
iOS 11 ✅
iOS 12 ✅
iOS 13 ✅
iOS 14 ✅
iOS 15 ✅
iOS 16 ✅
iOS 17 ✅
iOS 18 ✅
iOS 26 ✅

Android:

OS Status
Android 6 ✅
Android 7 ✅
Android 8 ✅
Android 9 ✅
Android 10 ✅
Android 11 ✅
Android 12 ✅
Android 13 ✅
Android 14 ✅
Android 15 ✅
Android 16 ✅

Playfield Engine running on Windows 11:

Playfield Engine running on Windows 11

Playfield Engine running on macOS:

Playfield Engine running on macOS

Playfield Engine running on Linux:

Playfield Engine running on Linux

Playfield Engine running on iOS simulator:

Playfield Engine running on iOS simulator

Playfield Engine running on Android emulator:

Playfield Engine running on Android emulator

Playfield Engine running on Windows XP — because why not:

Playfield Engine running on Windows XP

Playfield Engine running on NetBSD — Of course it runs!:

Playfield Engine running on NetBSD

NoctVM Ecosystem

Playfield Engine is a part of the NoctVM ecosystem:

  • NoctLang — portable scripting language (used in this project)
  • Playfield Engine — go-anywhere 2D game engine (this project)
  • NoctUI — a declarative UI library (not used in this project)

Together, they form the foundation of the Noct ecosystem. NoctLang itself is just the core language engine with no complex runtime. Playfield Engine is one of the runtimes that embeds and extends the NoctLang core.

License

Playfield Engine
© 2025 Awe Morris

Playfield Engine is available as open-source software under the MIT License. You're free to use, modify, and share it — even in commercial projects.

Join Us

Playfield Engine is still in its early stages. We're building the game engine with care, hoping it will inspire and empower creators around the world.

If you're interested in contributing — whether it's code, documentation, testing, or ideas — we'd be happy to have you with us.

Every small step helps shape what Playfield Engine can become. You're welcome to join us on this journey.

Join us on Discord
